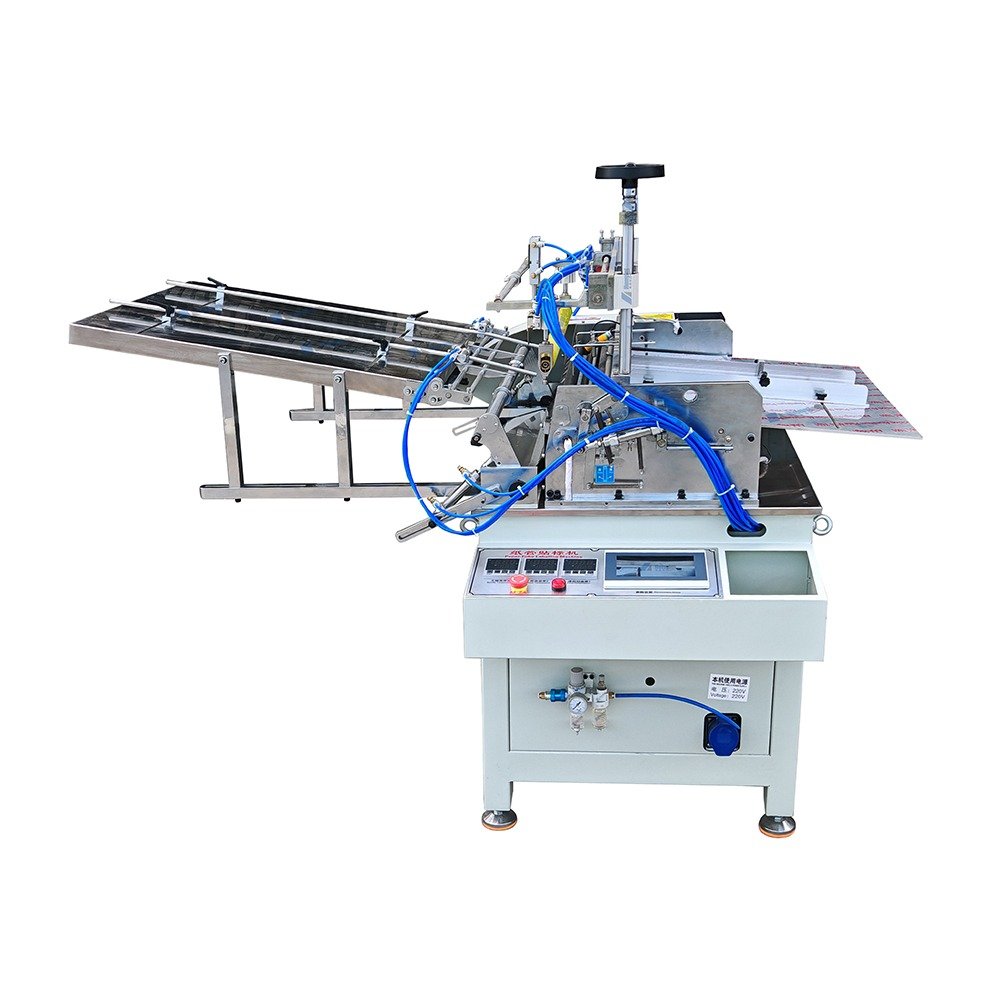

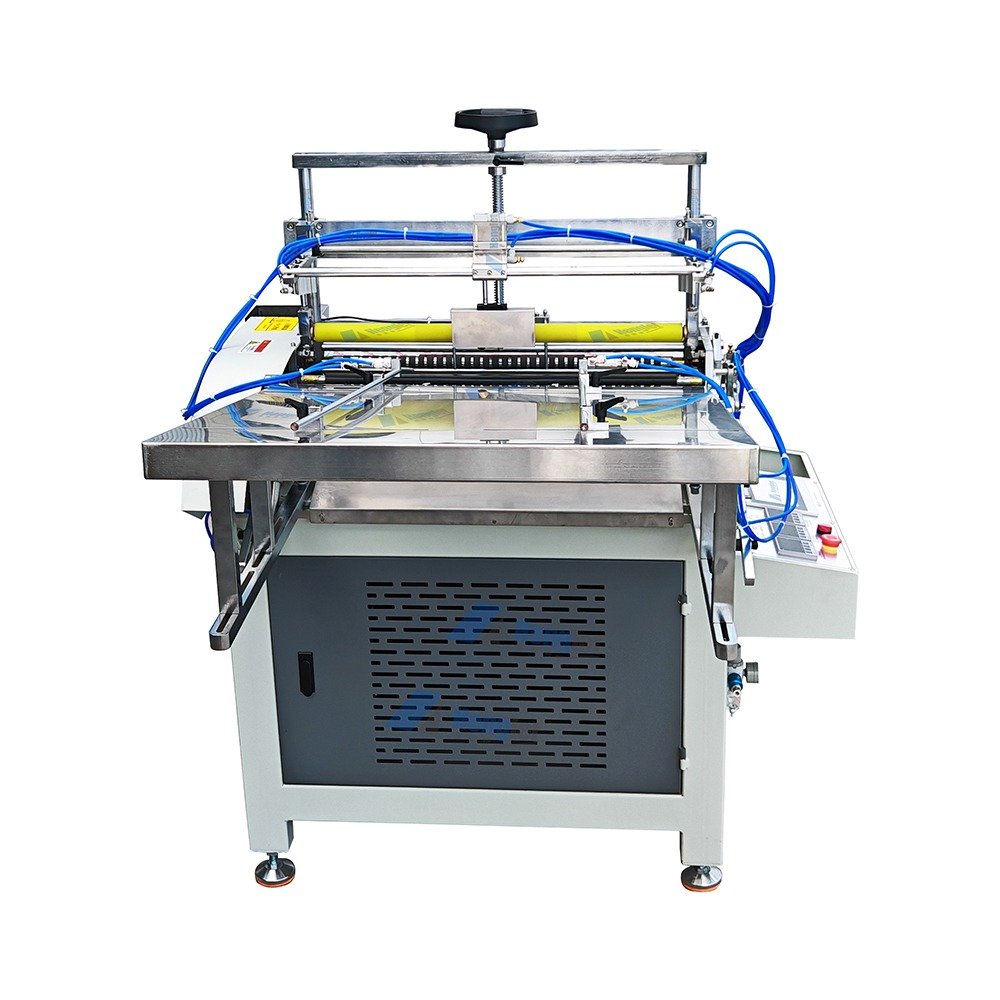

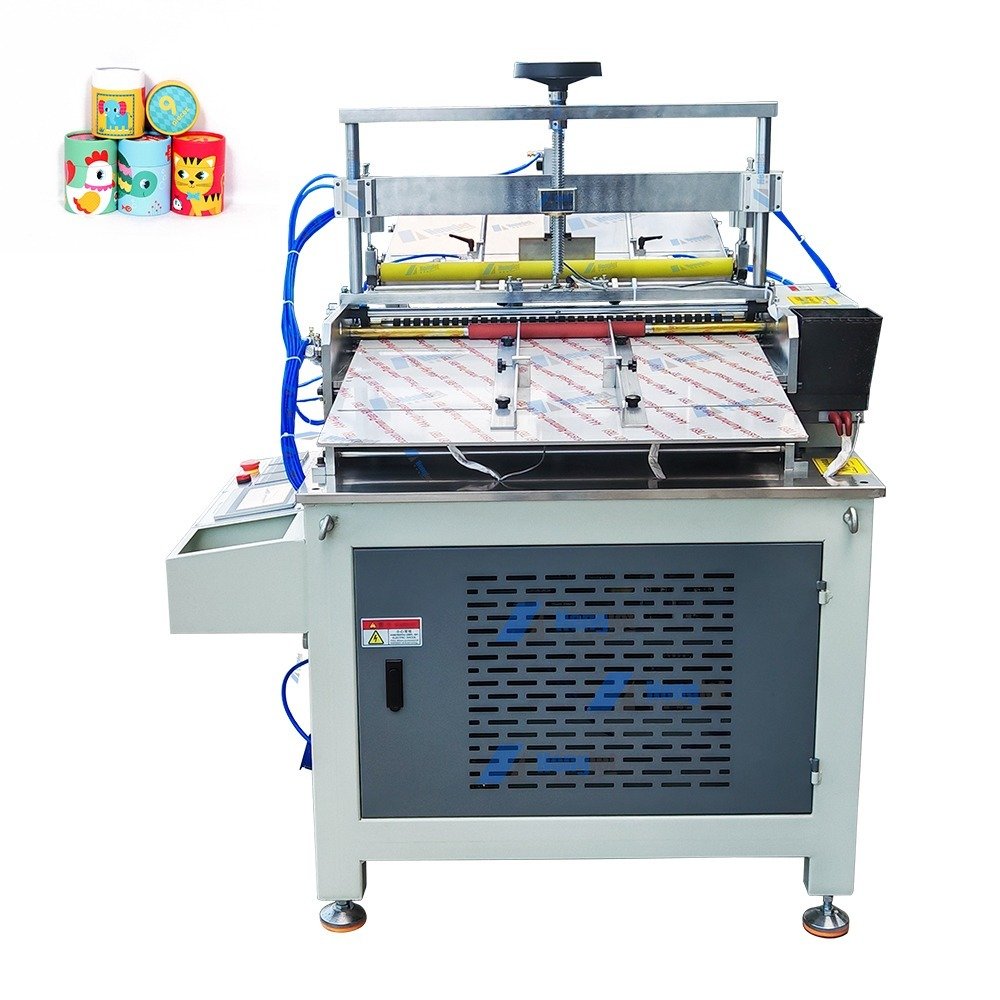

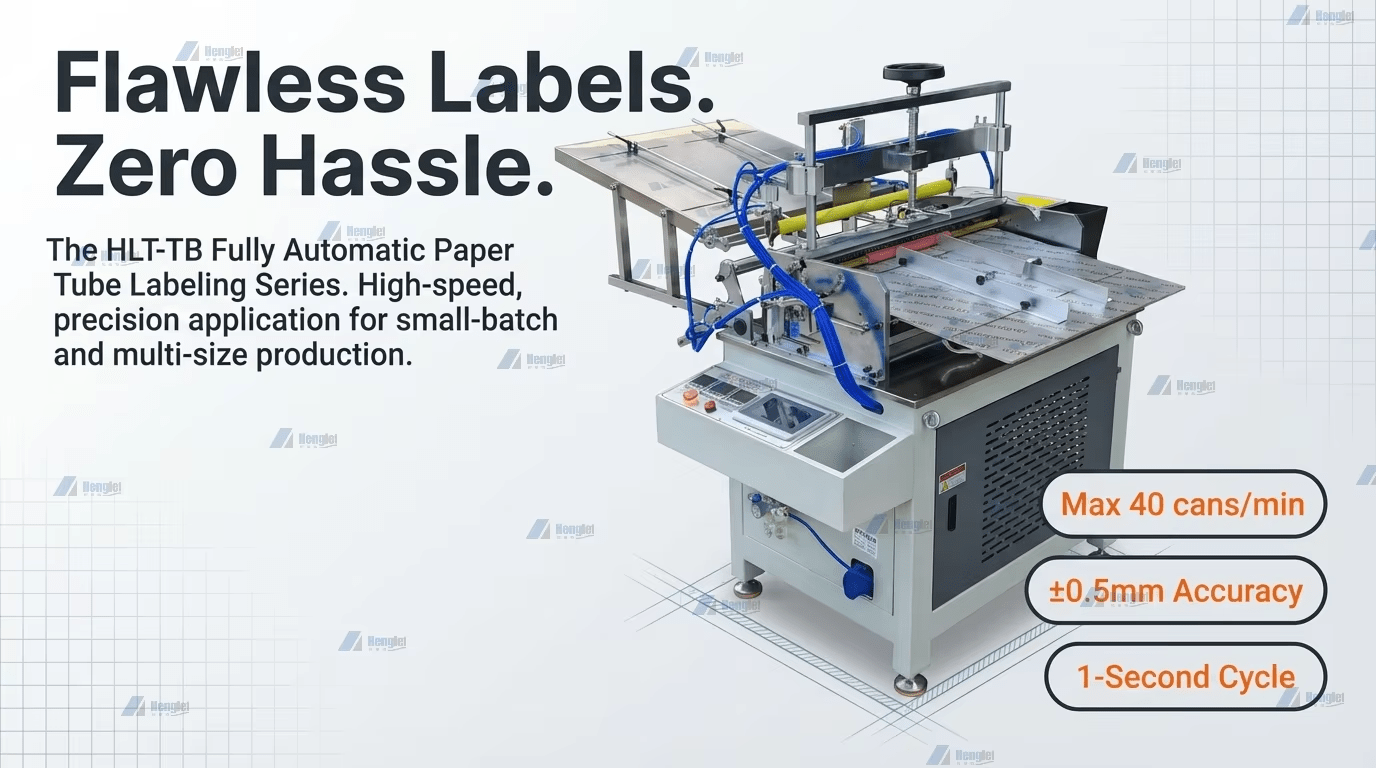

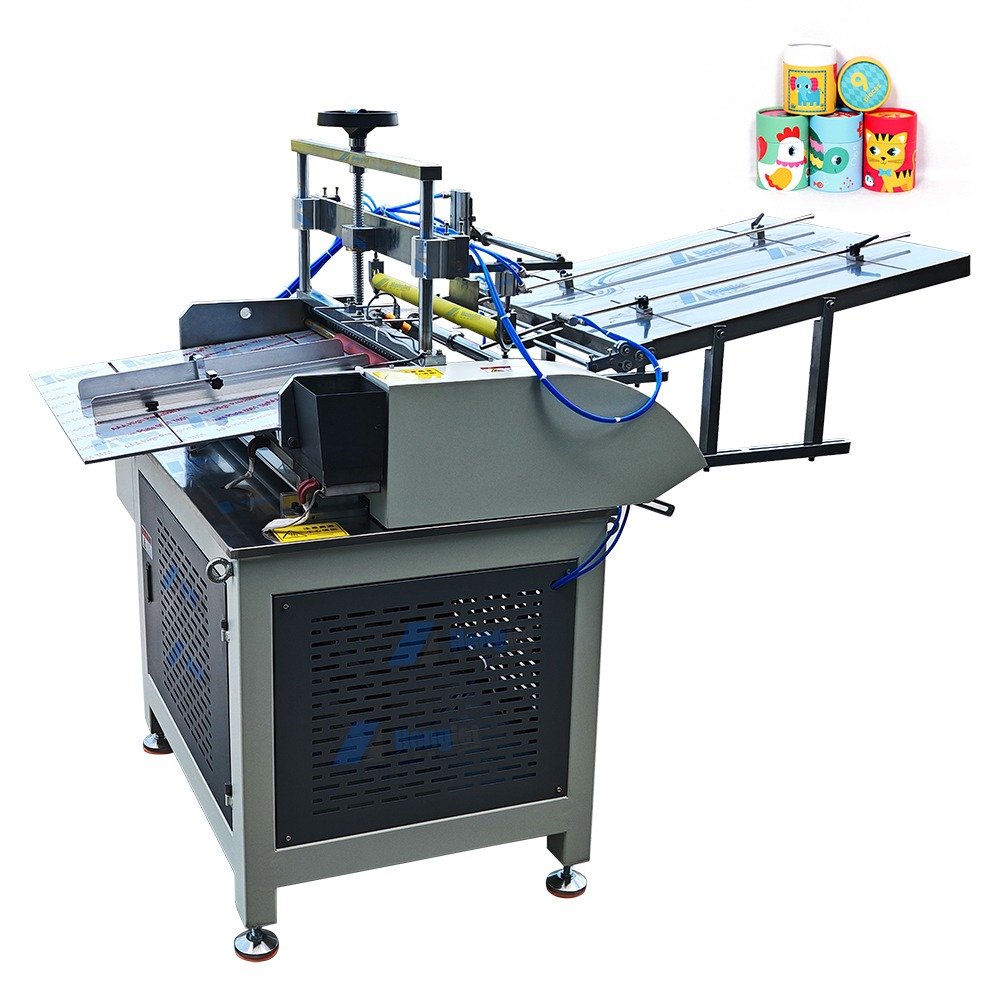

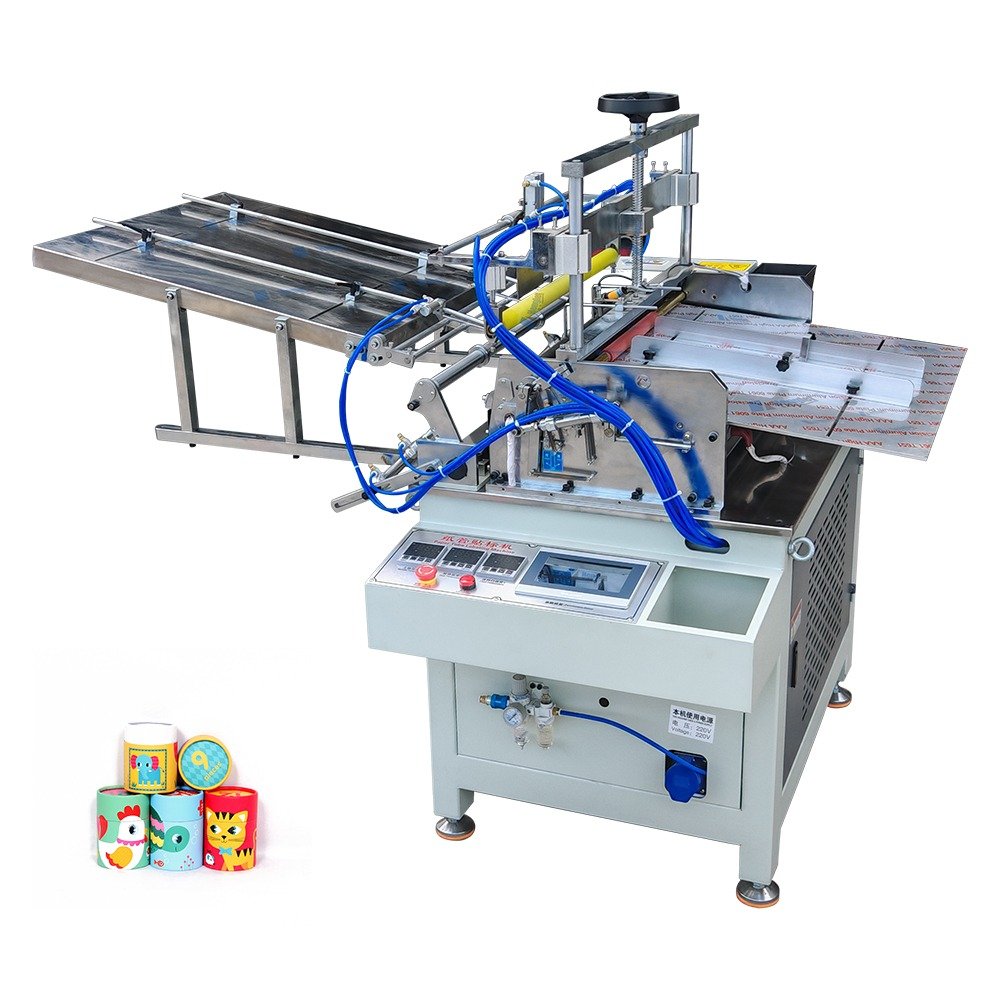

The HLT-TB Series Automatic Paper Tube Labeling Machine is a high-performance industrial solution designed for cylindrical containers

. This series, including the HLT-TB-500, 650, and 840 models, is engineered to handle various paper tubes, composite cans, and metal bottles with diameters ranging from 30mm to 200mm

. Designed with “speed and precision” as its core, the machine completes label picking, gluing, and application within a single second

Core Functions of HLT-TB Automatic Paper Tube Labeling Machine

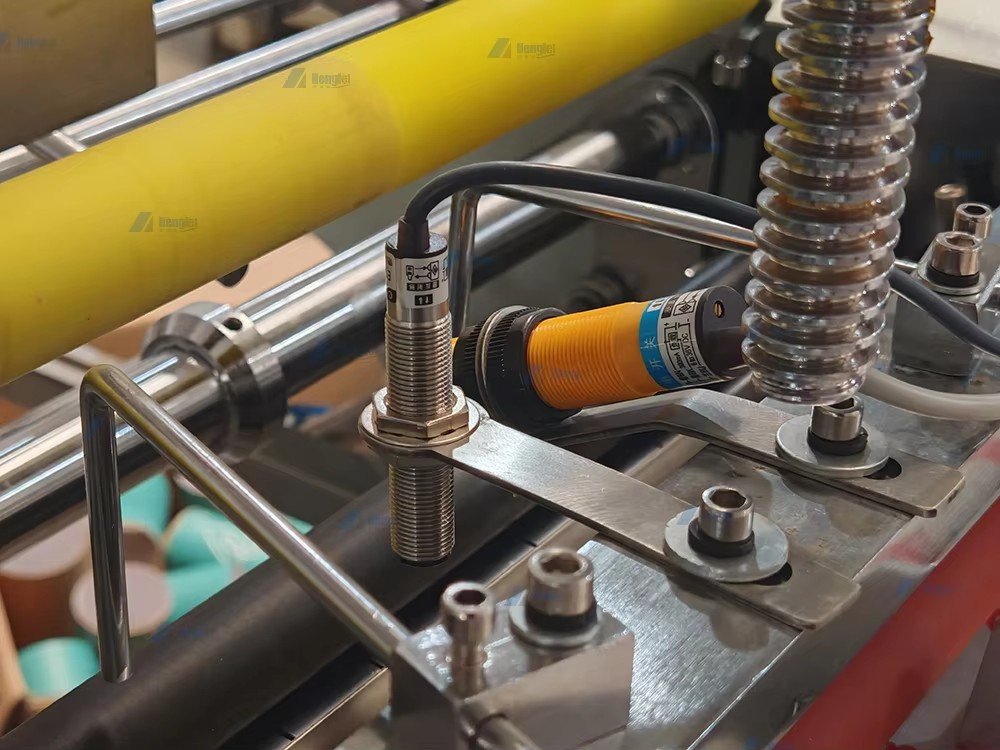

Fully Automated Workflow: The machine utilizes photoelectric automatic detection to manage the entire process—from picking labels in batches to precise application—automatically

Intelligent Temperature Control: Built with an integrated PLC temperature control module, it offers precision down to 0.1°C

. Once the target temperature is reached, the system activates an energy-saving insulation program that reduces power consumption by over 50%

Three-Roller Precision System: Using high-temperature resistant fine silicone rollers, the system ensures labels are applied tightly and flatly

. This patented technology prevents bubbles and wrinkles even on large-diameter, thin-walled, or soft tubes

Automatic Tube Discharge: Standardized with an auto-drop feature, the machine ejects tubes automatically after labeling, making it 2x faster than traditional manual discharge models

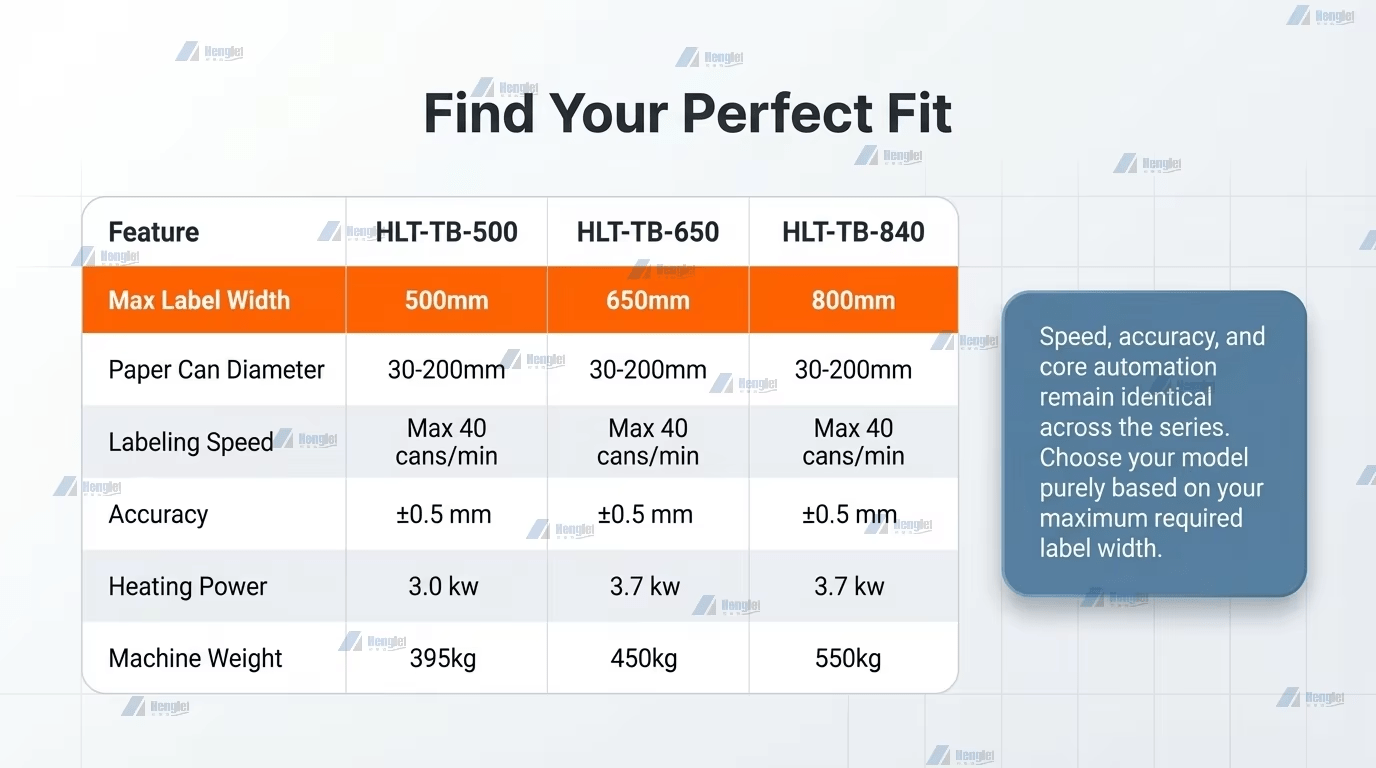

Technical Specifications of Automatic Paper Tube Labeling Machine

The HLT-TB series offers the following professional specifications based on your production needs:

Watch the full HLT-TB-500 operation demo on [YouTube]

Why Choose the HLT-TB Automatic Paper Tube Labeling Machine?

The HLT-TB series stands out due to its high ROI and process stability

. It utilizes an industrial hot melt adhesive process, which provides superior bonding compared to traditional cold glues

. Labels remain perfectly intact without peeling or opening even when exposed to water, high humidity, or high-temperature storage environments

. Furthermore, the machine allows for size changeovers without replacing any parts, minimizing downtime between different production batches

.

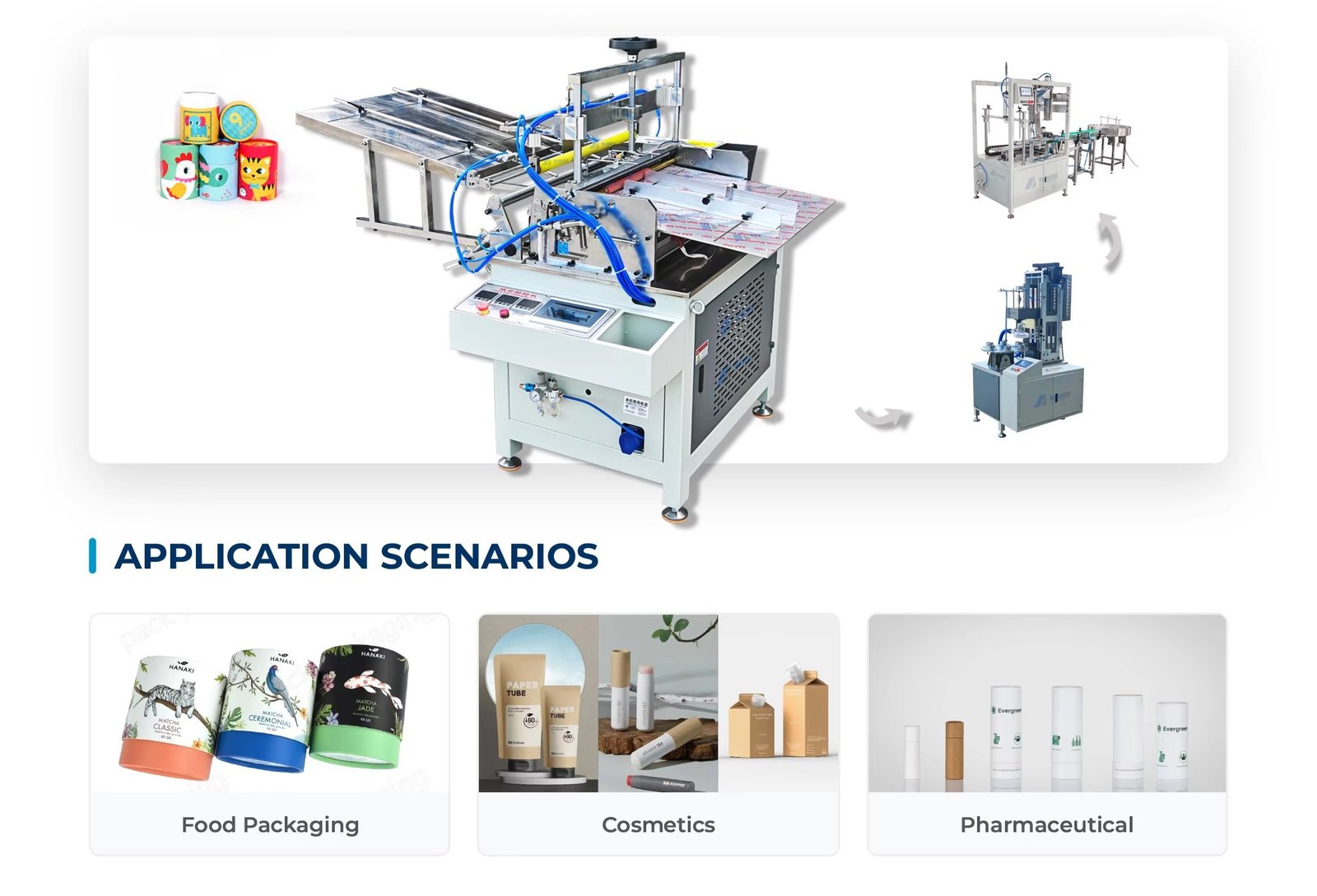

Application Scenarios for the Automatic Paper Tube Labeling Machine

This equipment is widely utilized across various industrial sectors

:

Food Packaging: Tea cans, wine containers, and composite snack tubes

.

Chemical & Pesticide: Labeling for cylindrical chemical containers and pesticide bottles

.

Professional Tube Manufacturing: High-volume production for paper tubes and composite cans

.

Multi-Material Versatility: Beyond paper, it supports labeling for plastic bottles, glass jars, and metal cans with options for full or partial (half-circle) labeling

.

Technical Advantages and Industrial Applications of the Automatic Paper Tube Labeling Machine

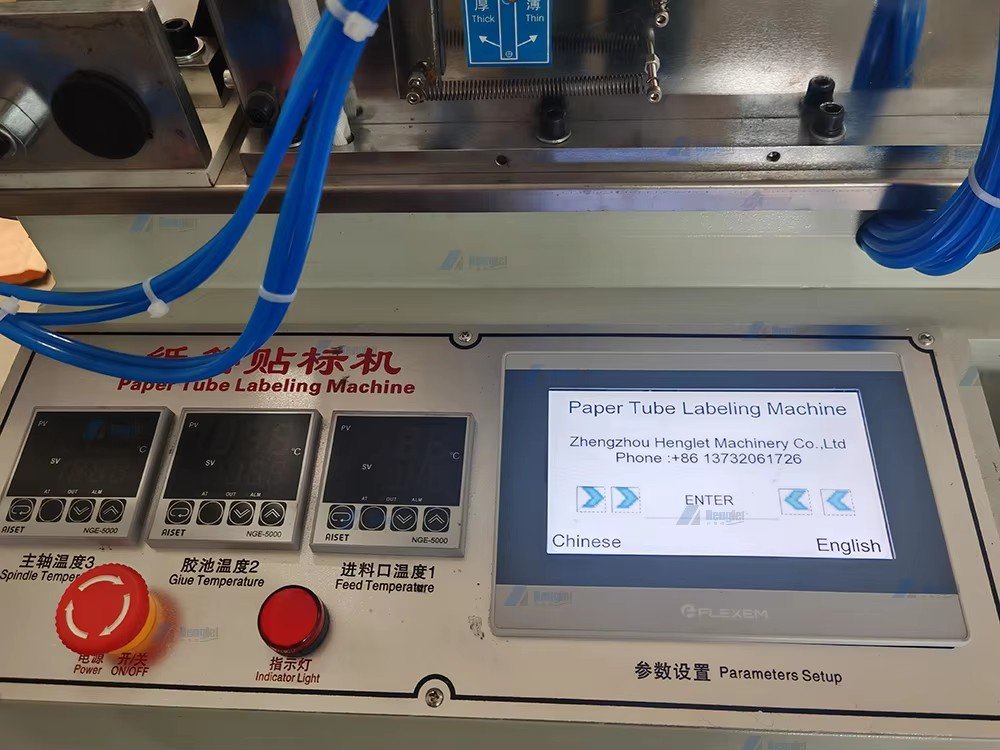

At the heart of the HLT-TB series is a digitalized intelligent control center

. Controlled via an imported Flexem bilingual (English/Chinese) touch screen (as seen in source

), operators can easily adjust settings

. The system’s feedback speed is over 2x faster than traditional circuit controls and features a recipe storage function, allowing operators to recall historical parameters for consistent cross-batch quality

.

Installation and Maintenance of the Automatic Paper Tube Labeling Machine

Designed for durability and safety, the machine includes a protective interlock that prevents the motor from starting until the glue has reached the required melting point

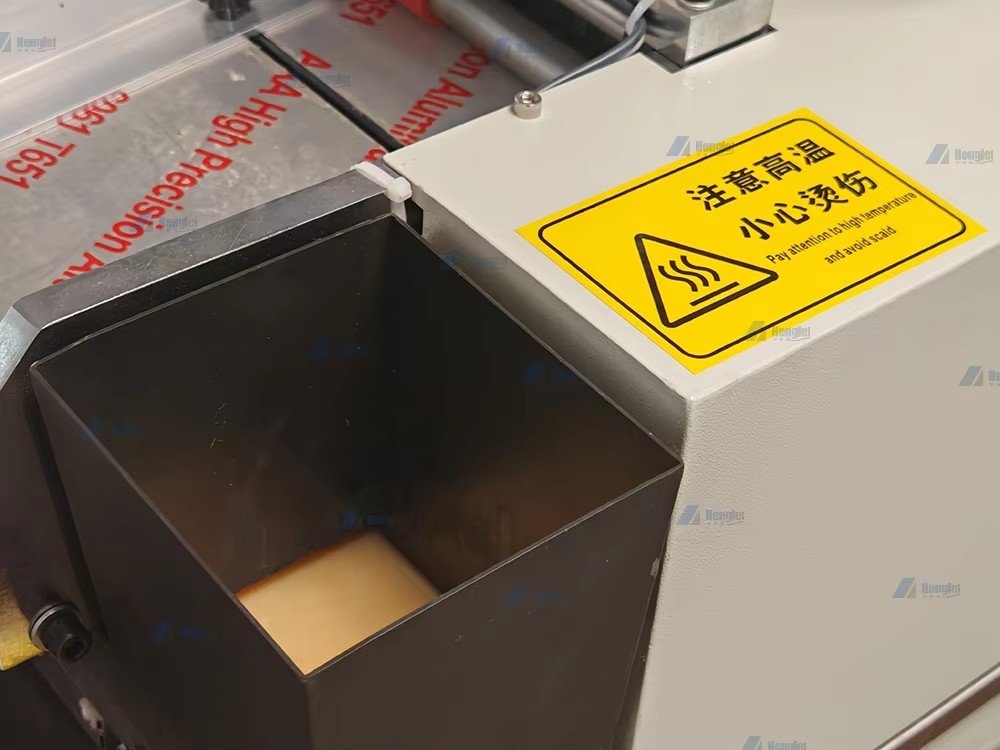

. For operational safety, high-temperature and mechanical injury warning labels are clearly visible on the unit (as seen in source

)

.

Customer Success Stories for the Automatic Paper Tube Labeling Machine

The HLT-TB series has successfully helped numerous food and chemical enterprises upgrade their packaging lines

. Its proprietary three-roller system is specifically praised for solving common industry pain points, such as uneven gluing and wrinkles on delicate, thin-walled containers

.

After-Sales Support for the Automatic Paper Tube Labeling Machine

Zhengzhou Henglet Machinery provides comprehensive technical support for the HLT-TB series. With the PLC data archiving feature, our team can provide more accurate remote guidance for machine tuning

. Additionally, the zero-mold-change design means that long-term operational costs for spare parts are significantly lower than competing models

The Brain of the Operation Micro-Degree Accuracy Automatic temperature control accurate to 0.1degree,maintaining the perfect hot-melt consistency. Imported PLC Control System Switch seamlessly between English and Chinese. Features built-in specification memory for instant recall of past jobs. Lightning-Fast Feedback Operates 2X faster than standard circuit board controllers for real-time error prevention and overload protection.

The Anatomy of Perfect Application The 3-Roller Matrix Engineered to force the label into incredibly tight adherence with the can body, eliminating air bubbles and wrinkles. Imported Fine Silicone The bright yellow rollers are cast from premium, high-temperature resistant silicone. Thin-Wall Friendly The gentle yet firm tension profile allows for continuous labeling of even large-diameter, soft, thin-walled tubes without crushing them.

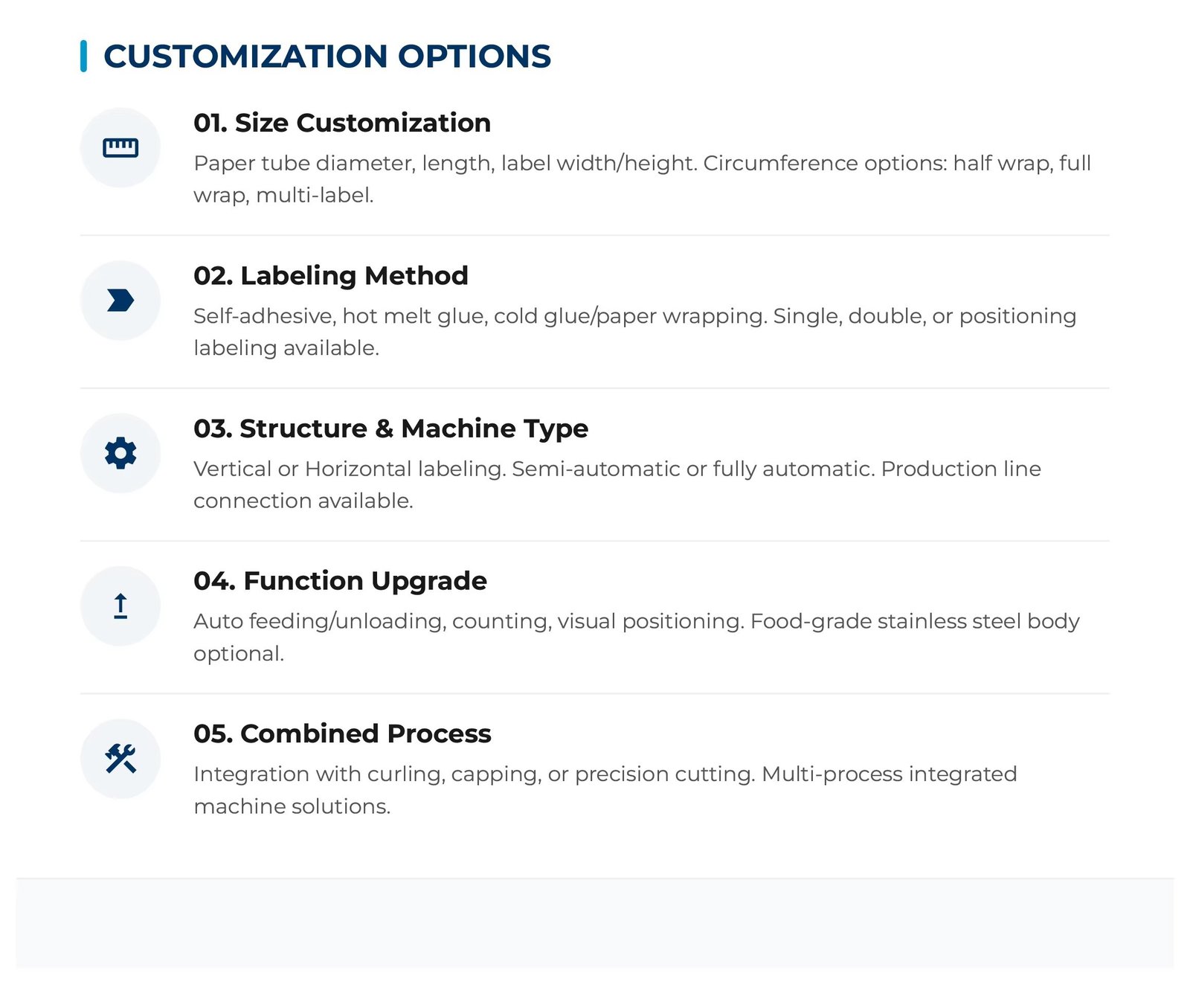

Why Choose Automatic Paper Tube Labeling Machine HLT-TB?

01.Size Customization Paper tube diameter Paper tube length Label width / height Labeling circumference: half wrap, full wrap, multi-label available 02.Labeling Method Customization Self-adhesive labeling Hot melt glue labeling Cold glue /paper wrapping labeling Options: single label, double labels, positioning labeling

03.Structure & Machine Type Customization Vertical labeling (suitable for upright paper tubes) Horizontal labeling (suitable for slender, unstable tubes) Semi-automatic /fully automatic customization Can be connected to production lines, with conveyor system optional
